Rolex 1520

Last updated: July 27, 2025

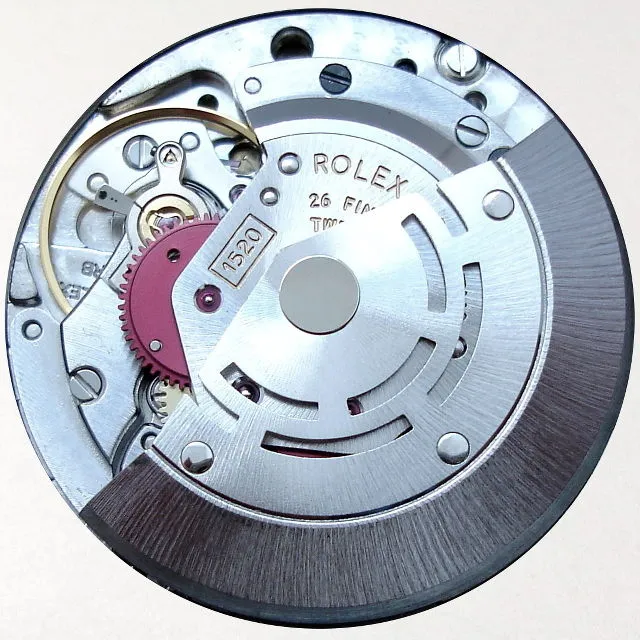

Close-up of a Rolex watch movement showing gears, metal parts, and the engraved ROLEX and 1520 model number.

Brand

Caliber Number

1520

Production Period

1963-c. 1980

Lignes

12.5”’

Diameter

28.5 mm

Height

5.75 mm

Power Reserve

Unconfirmed

Frequency

19,800 bph (2.75 Hz)

Jewels

17, 25, or 26

Escapement

Swiss lever escapement

Anti-Shock Device

Unconfirmed

Hand Count

3

Manufacture Region

Unconfirmed

Functions

Hours, Minutes, Sweep Seconds

Rolex 1520 Description

The Rolex Caliber 1520 is an automatic movement introduced in 1963. It was based on the Caliber 1530 and was designed as a durable and more cost-effective option for Rolex’s non-chronometer watches. It famously powered the Submariner Ref. 5513 and the Air-King Ref. 5500. The 1520 is characterized by its use of a stick regulator and a flat hairspring. Despite not being a certified chronometer, it is highly regarded for its robustness and reliability, solidifying its place as a workhorse movement in Rolex’s history.

Watches Using The Rolex 1520 Caliber

Gold and silver Rolex Air King 5701 Oyster Perpetual watch showing the date as the 22nd.
Silver Rolex Air-King Date watch with a white dial, date window at 3 o’clock, and sleek metal link bracelet—an iconic design inspired by the classic Rolex 5700.
A Rolex Air-King Date watch, reference 5701, featuring a gold bezel, champagne dial, and silver metal bracelet.
A Rolex 5701 wristwatch with a brown leather strap, white dial, gold bezel, and date display.
Silver Rolex Oyster Perpetual Air-King 5500 watch with a white dial and stainless steel bracelet, inspired by the classic style of the Rolex Explorer.
A silver Rolex Explorer 5501 watch with a gold bezel, white dial, and gold hour markers on a metal band.
