There is a small, very specific corner of vintage Hamilton catalog where the watch you are holding is, almost literally, the first of its kind. To us this Hamilton Thin-O-Matic Ref. T-406 lives squarely in that corner, and we mean that quite seriously. The Cal. 663 powering it is Hamilton’s house designation for the Buren 1000 series, which is one of the very first micro rotor automatic movements ever put into commercial production. Not the first thin automatic, not the first integrated rotor, the first micro rotor. The watches that followed from Universal Genève, Piaget, Patek Philippe and others all came after this, and pretty much owe their existence to the patent Buren filed in 1954.
Hamilton entered into a quiet but consequential partnership with Buren in the late 1950s, and the Thin-O-Matic line was the American-marketed result. Buren in Switzerland supplied the movement architecture, Hamilton’s Lancaster, Pennsylvania operation supplied the dial design vocabulary and the case sourcing, and the watches went out the door wearing American case stampings and Swiss horological engineering. By 1962, when this T-406 reference was in the catalog, Hamilton had committed fully to the thin-automatic story, and the Thin-O-Matic had become the marquee dress automatic in their range. The full acquisition of Buren came a few years later in 1966, but by then this exact piece had already been on wrists for half a decade.
The Cal. 663 itself, which we cannot photograph through the snap caseback but which we have inspected during service, is the 17-jewel Hamilton-finished variant of the Buren 1000A. Its design trick is the one that defined the entire micro rotor category, namely a small off-center oscillating weight that lives inside the movement plane rather than sitting on top of it. The result is a fully automatic caliber that is barely thicker than a comparable hand-wind movement, which is what allowed cases like this T-406 to keep their slim profile while still self-winding. It is not a chronometer-grade movement and it never claimed to be, but it is the kind of caliber that ran for decades on simple service intervals and that genuinely earns the historical footnote it has earned.

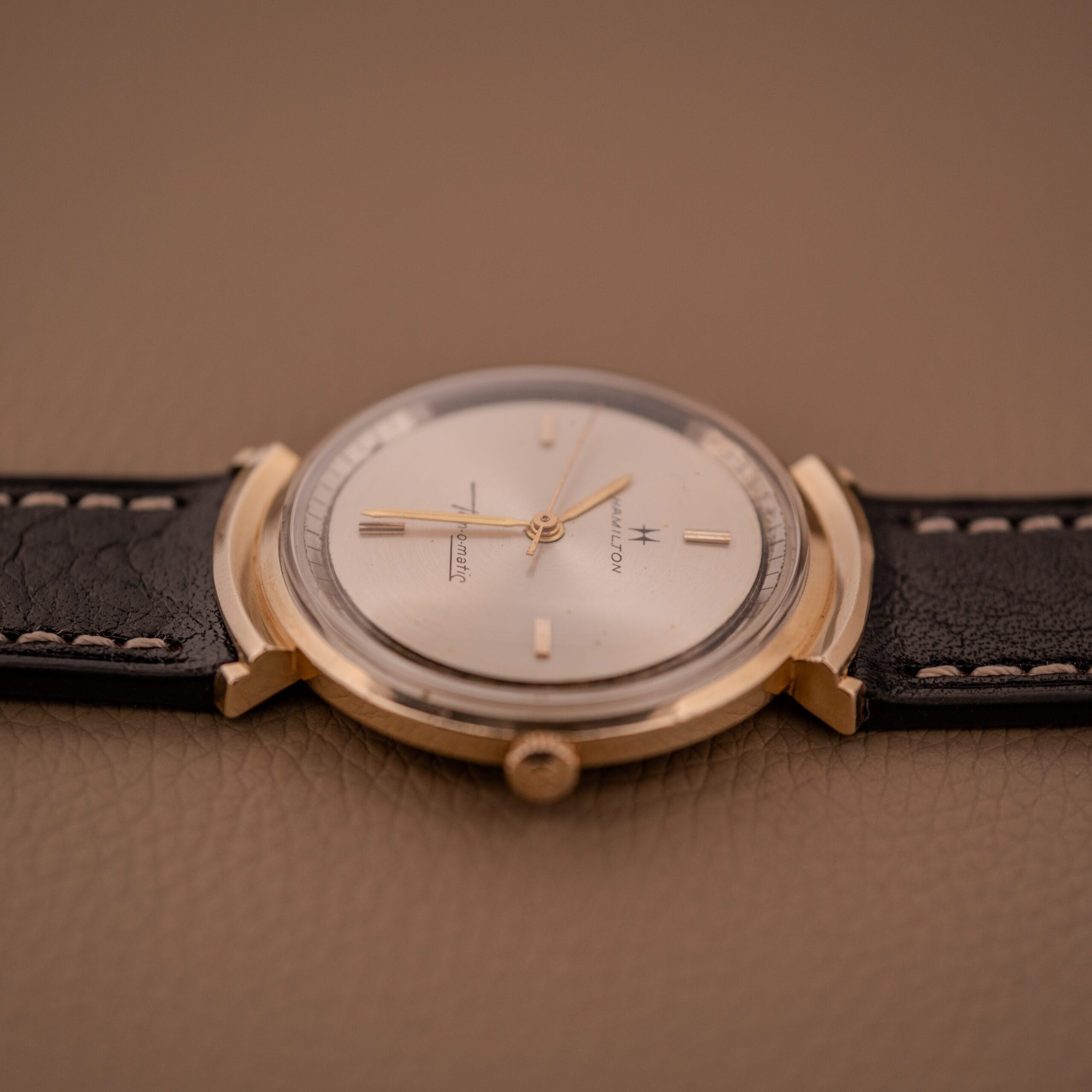

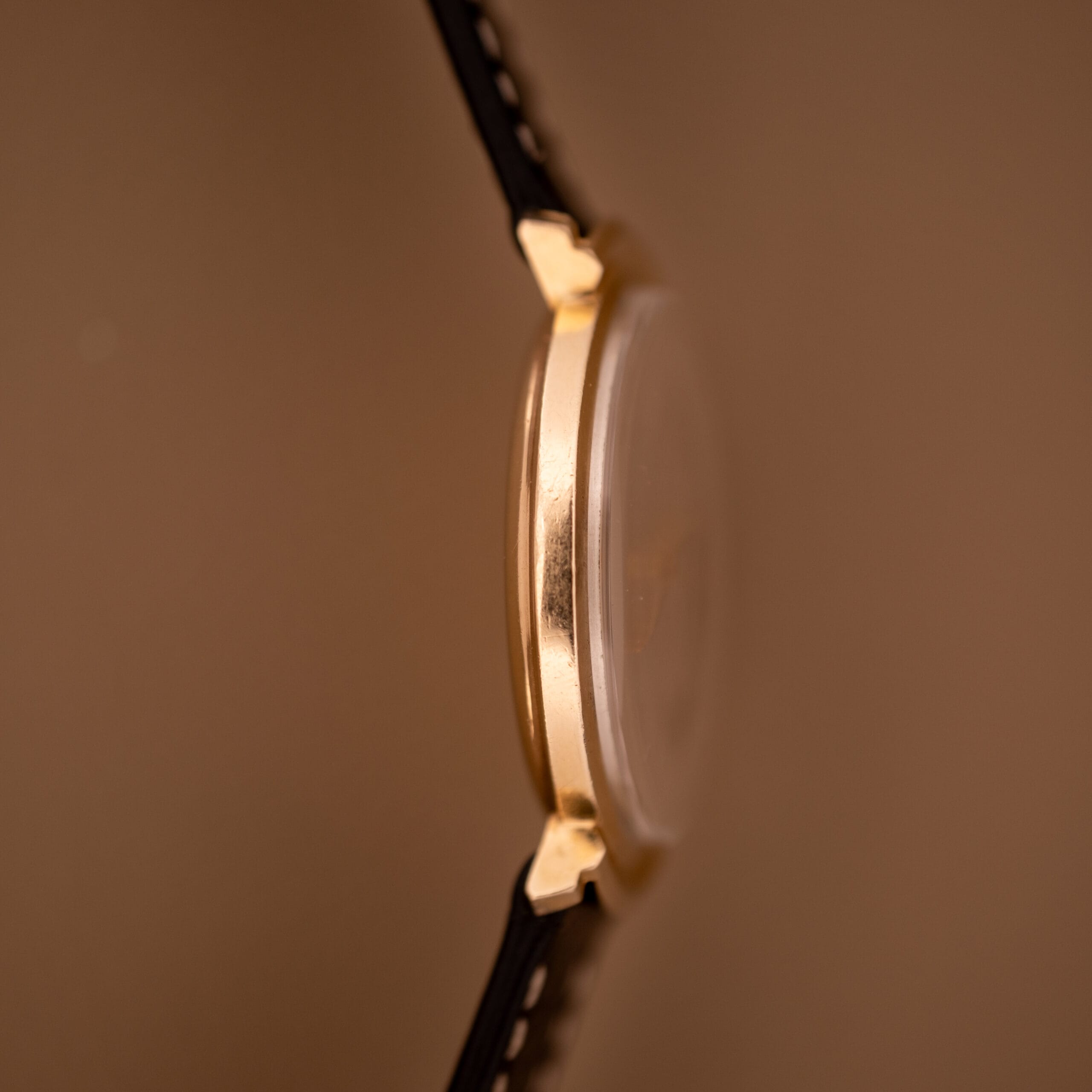

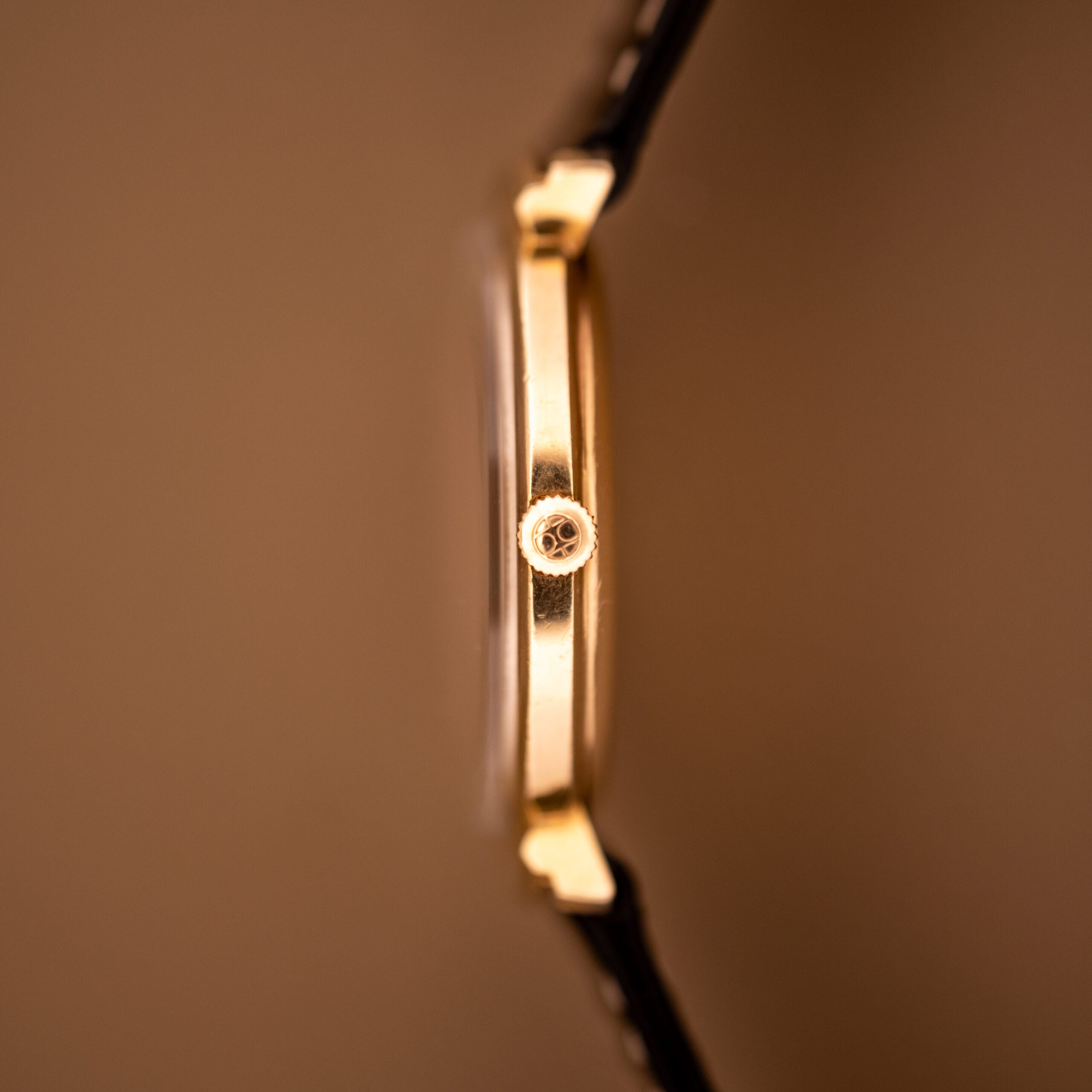

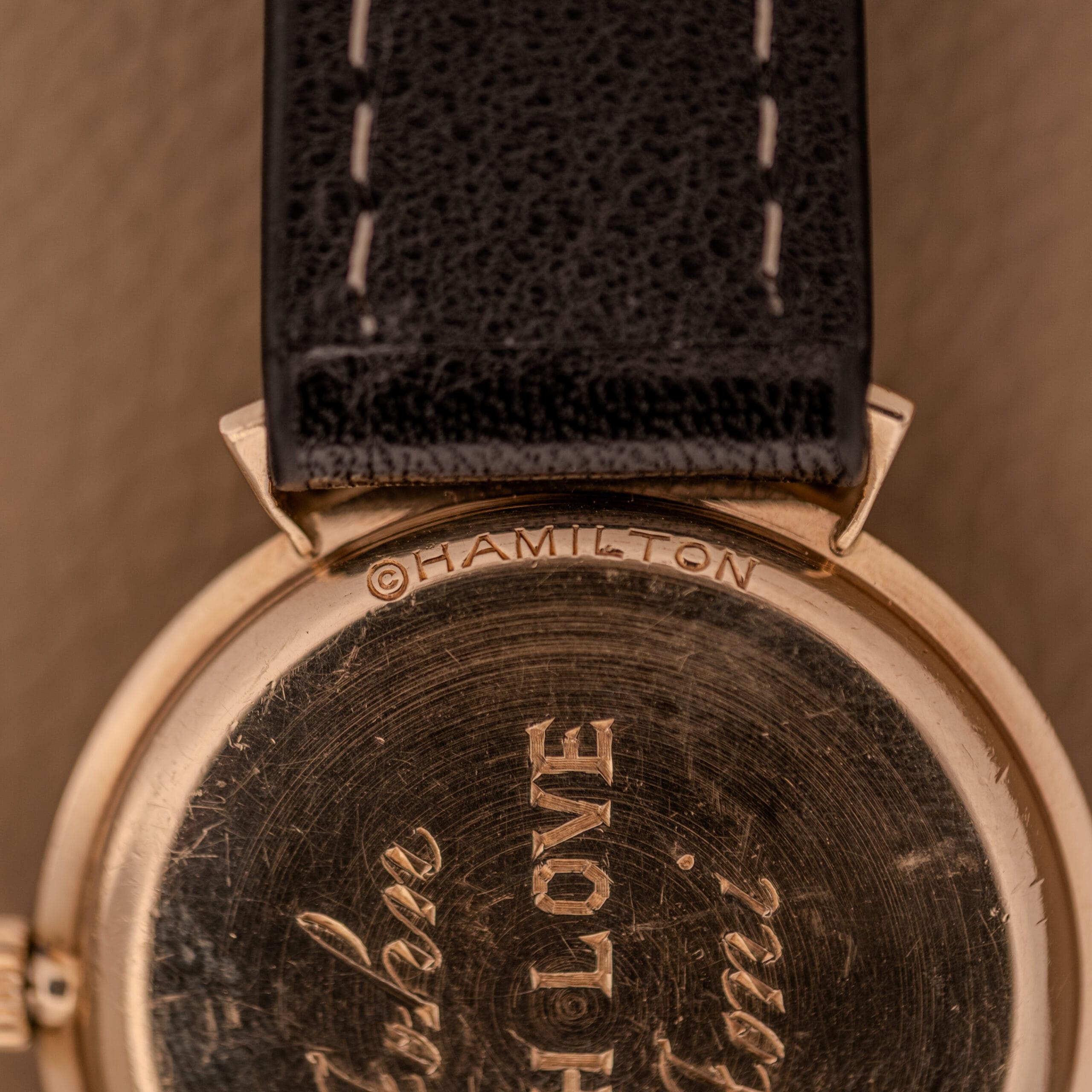

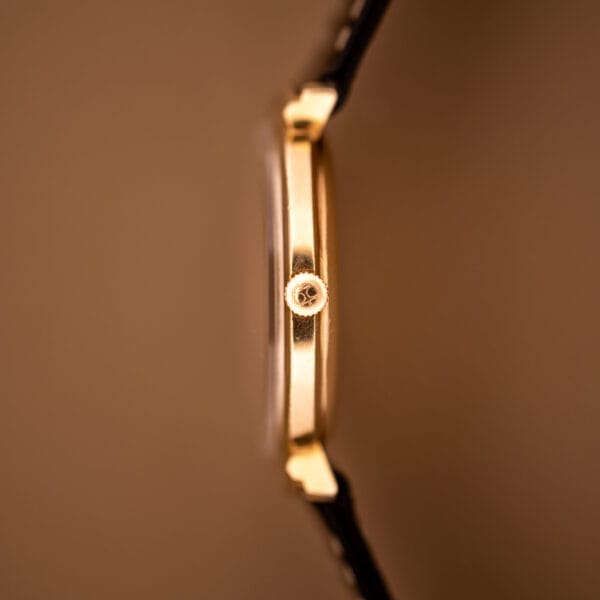

The case is 10k yellow gold filled, which is to say a thick bonded layer of gold over a base metal substrate, distinct from the much thinner electrodeposit you get with plating. The outer caseback is smooth and unadorned, stamped only with the maker’s logo across the top edge that reads ©HAMILTON, and beneath the engraved area along the bottom edge with a P case-maker mark and 10KT G.F. for the gold-filled designation. Measurements come in at 33.5mm case width with a 40mm lug-to-lug, which by today’s reckoning sounds petite but on the wrist reads exactly as a 1960s dress automatic should read. The hooded lugs are the visual hook on this case. They flow out from the case band as integrated extensions of the bezel that wrap down over the strap mounts, hiding the spring bars entirely from view and giving the watch a finished, almost slipper-like silhouette from the front. It is a design choice that looks effortless and was, by all accounts, the opposite of easy to manufacture cleanly. There is honest wear across the gold filled surfaces, with light surface marks at the lug tips and along the bezel edges, all consistent with a watch that has lived a real life since the early 1960s.

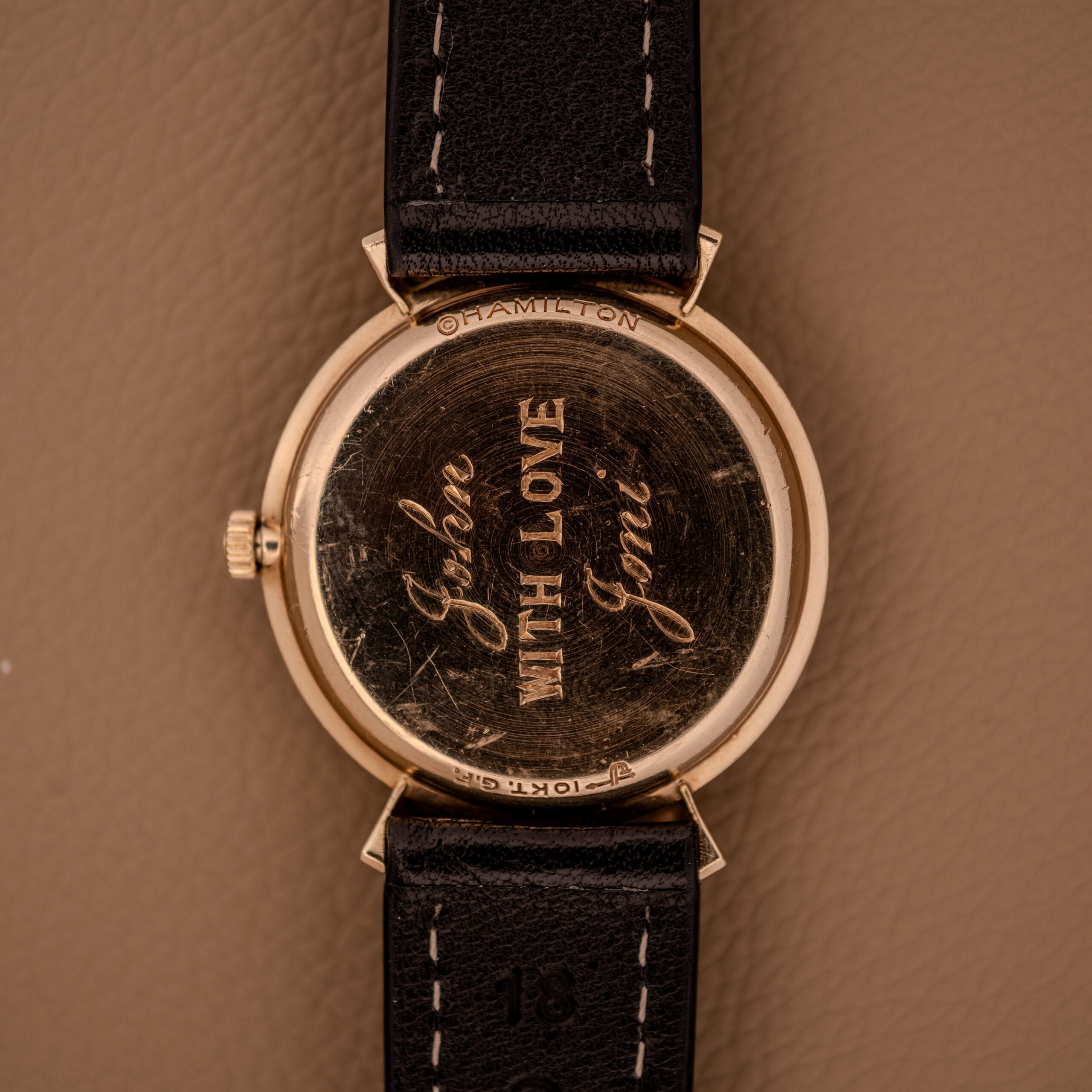

What makes this particular example special, and what we always look for in a caseback, is the personal engraving on the inner face: “John WITH LOVE Joni.” It is the kind of inscription that gives a watch a documented history beyond the catalog reference number, and to us those engravings are character marks rather than blemishes. Someone gave this watch as a gift, and it travelled into our hands more than sixty years later still keeping good time.

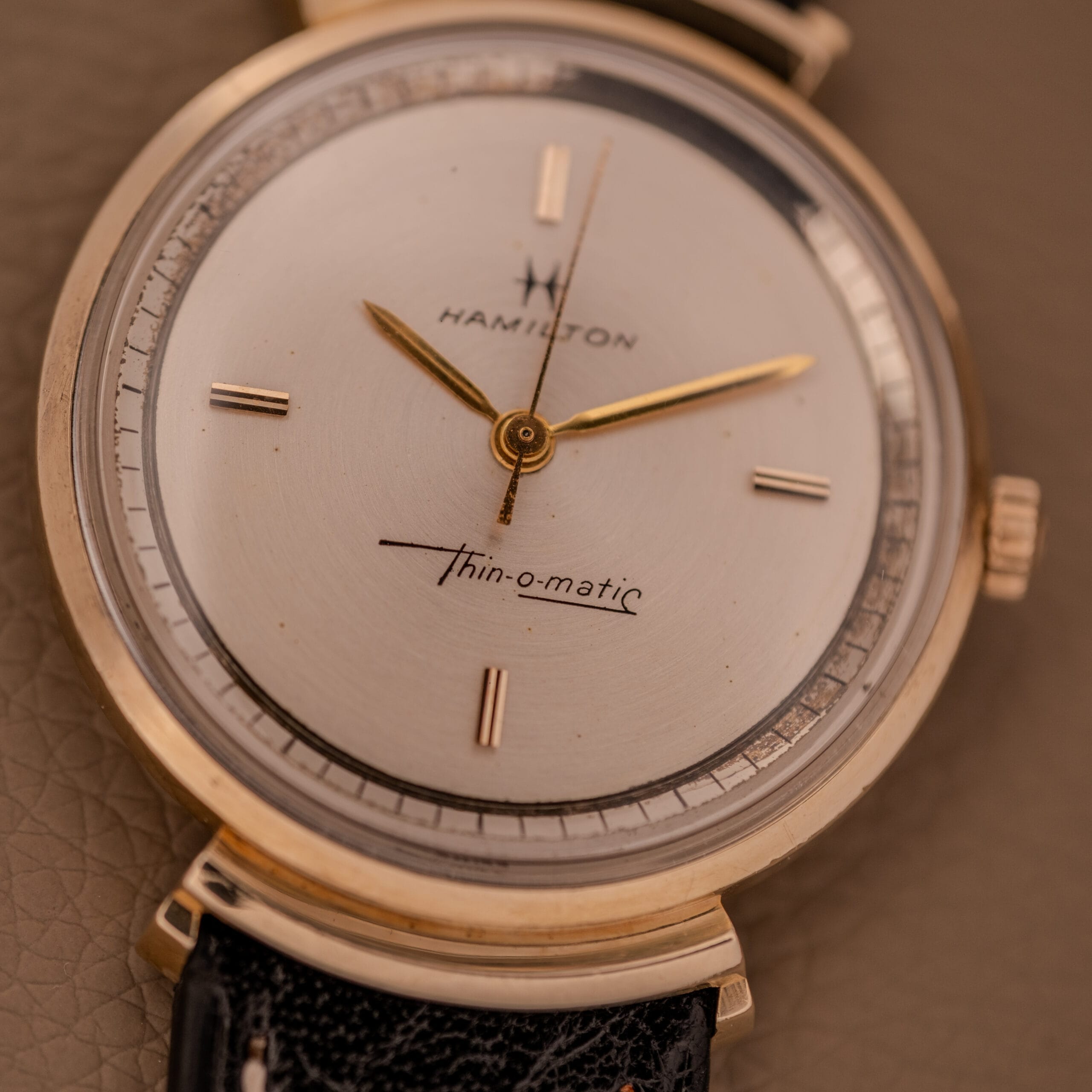

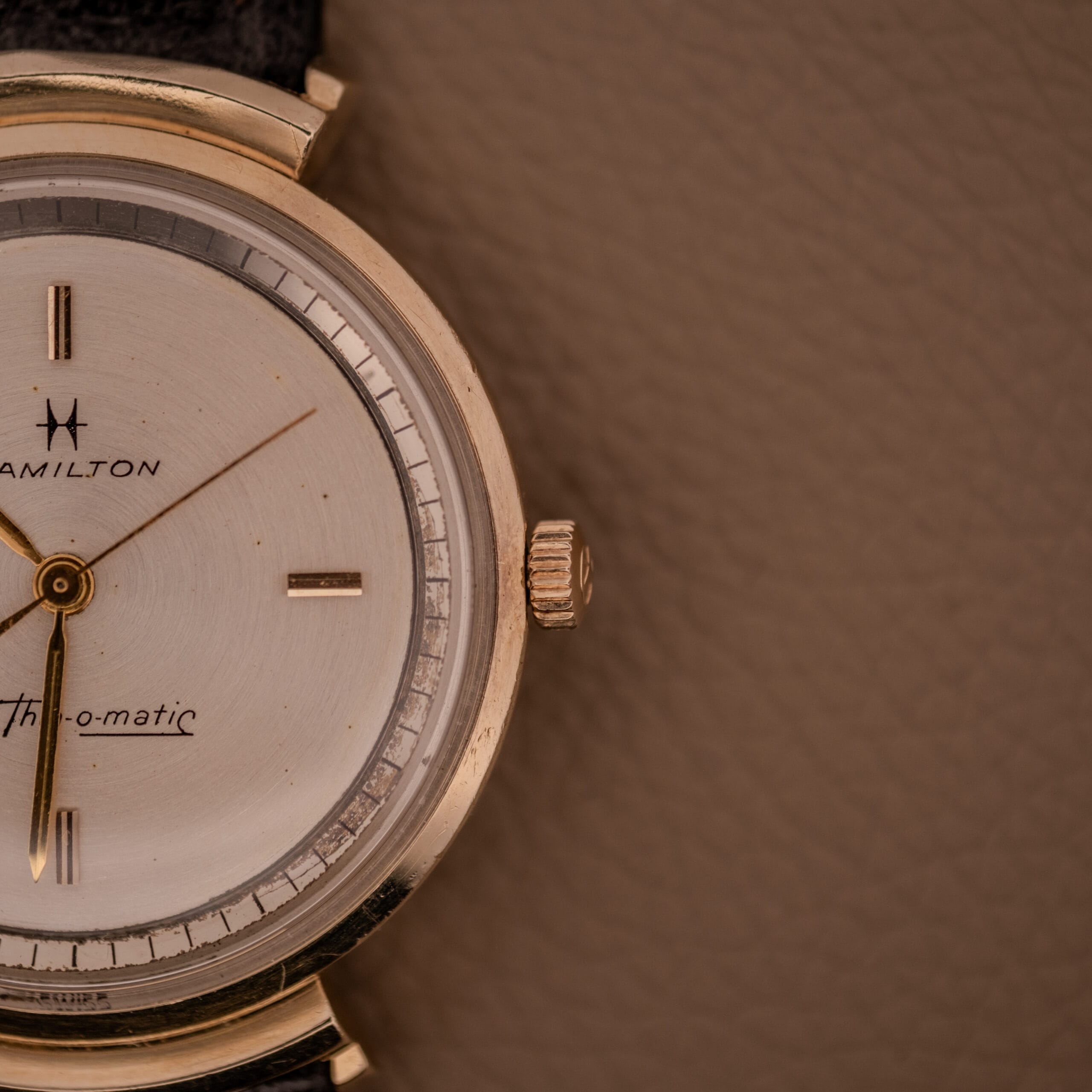

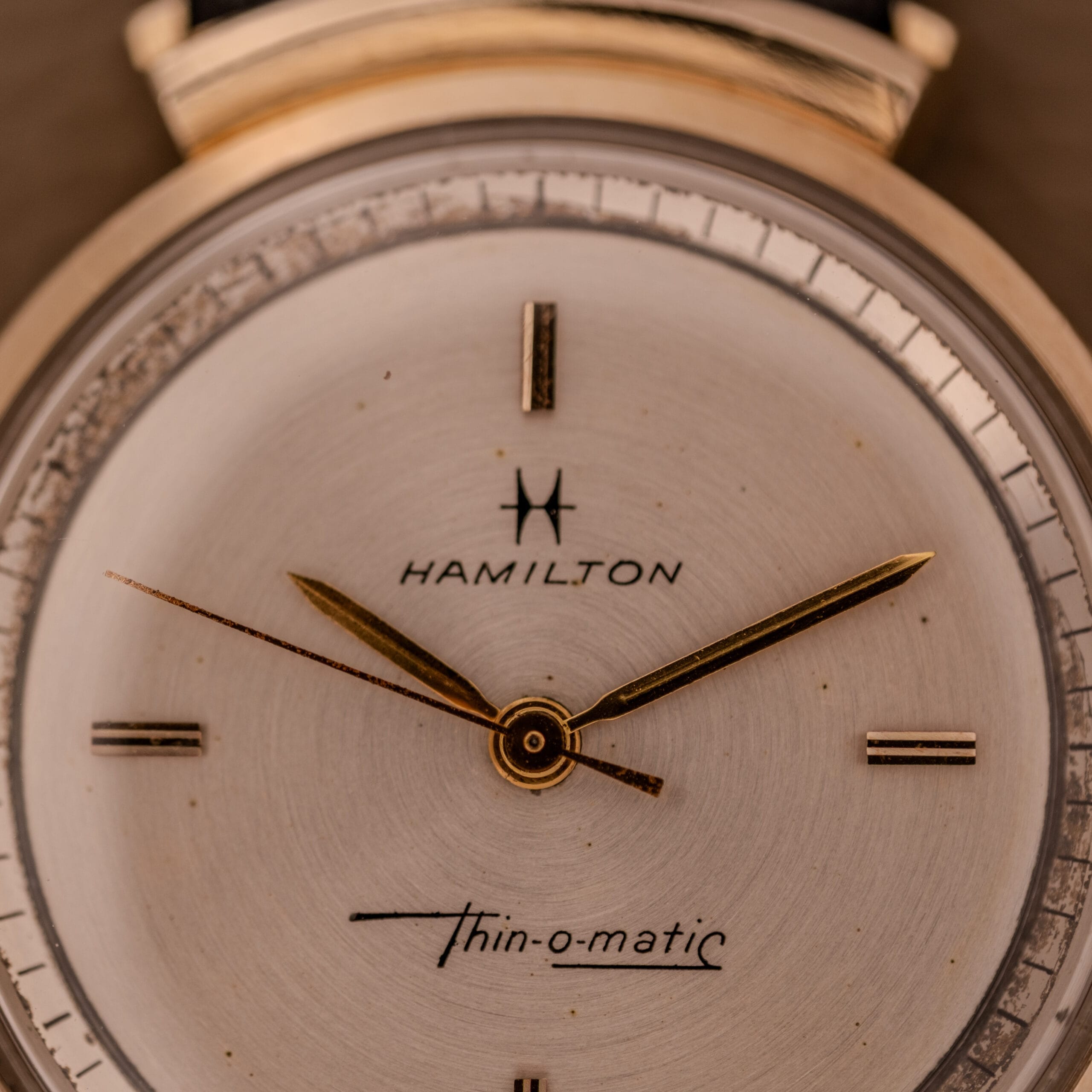

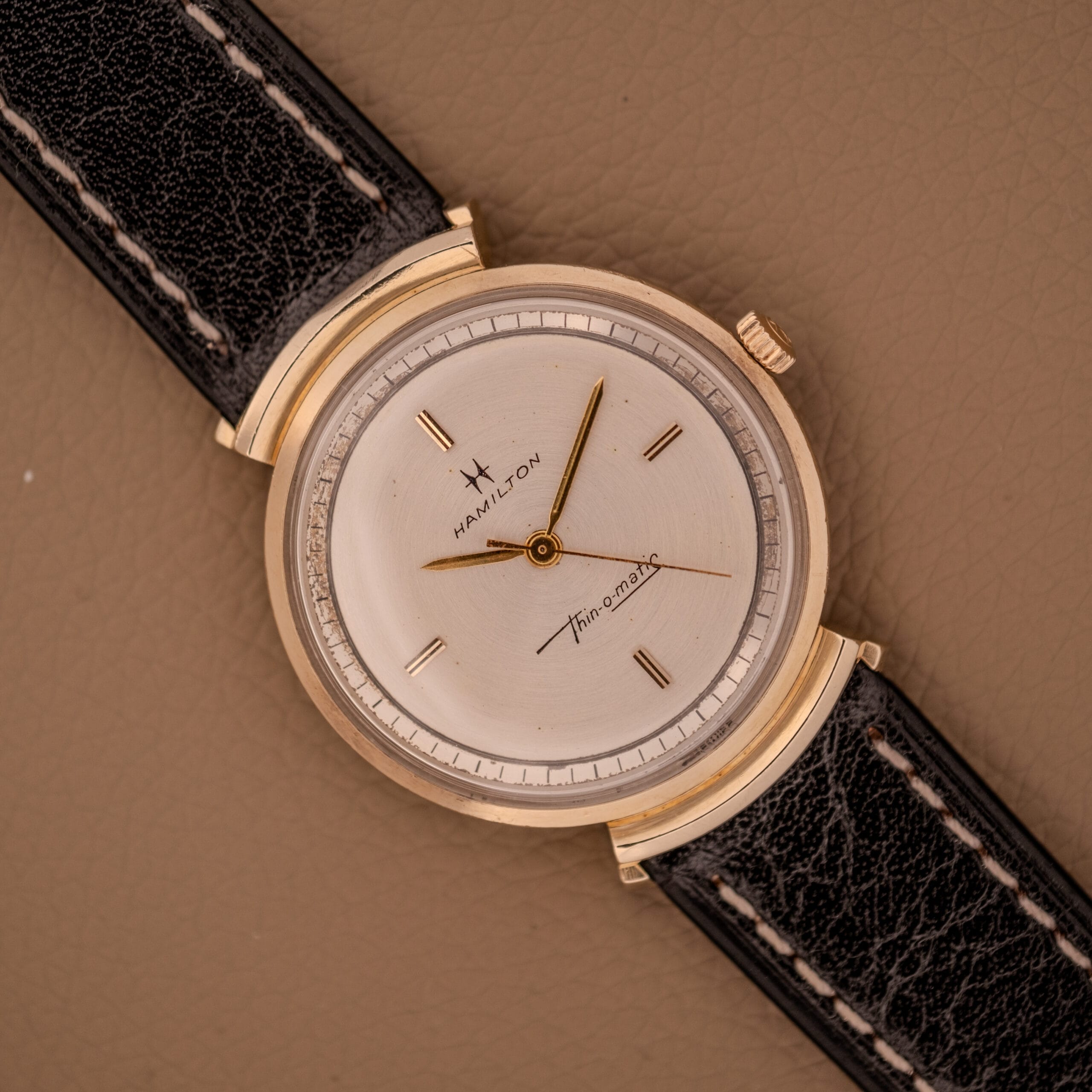

The dial is the part we keep coming back to. It is a silver-champagne surface with a very subtle radial texture, framed by a recessed outer chapter ring whose inner wall carries a fine vertical guilloche treatment that catches the light differently than the central area. Applied gold baton markers sit at 12, 3, 6 and 9, with the 3 and 9 positions rendered as double-grooved split batons that read like little stacked rectangles up close. The Hamilton H-crest sits beneath twelve with HAMILTON printed in a clean sans-serif beneath it, and a cursive Thin-o-matic script floats above the six position. Gold dauphine hour and minute hands have warmed to a wonderfully oxidized honey tone over the decades, a slim gold central sweep seconds completes the layout, and the dial itself shows light foxing where the lacquer has aged, which we read as quiet warmth rather than damage. It is a time-only, no-date layout, which on a dress automatic of this era is exactly correct.

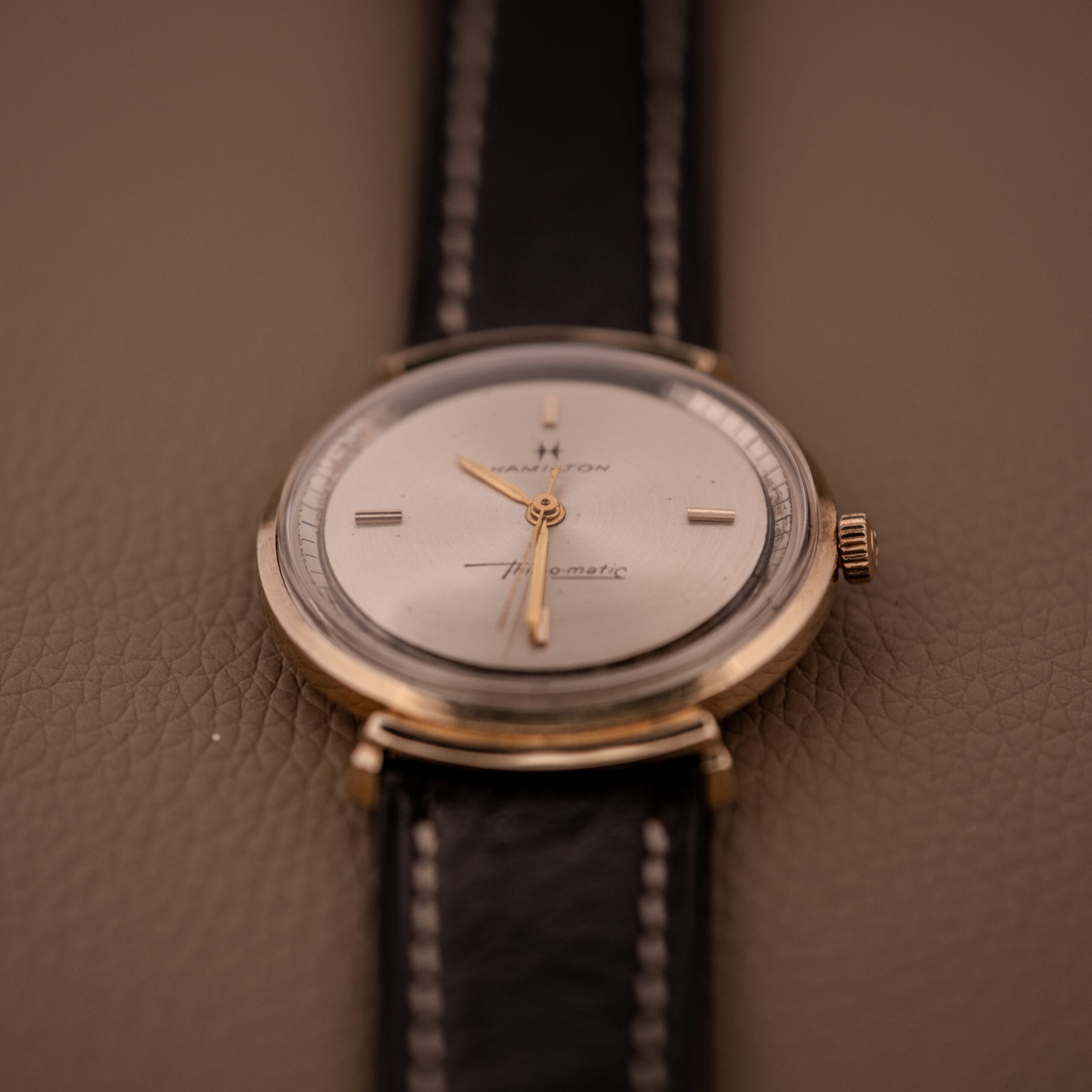

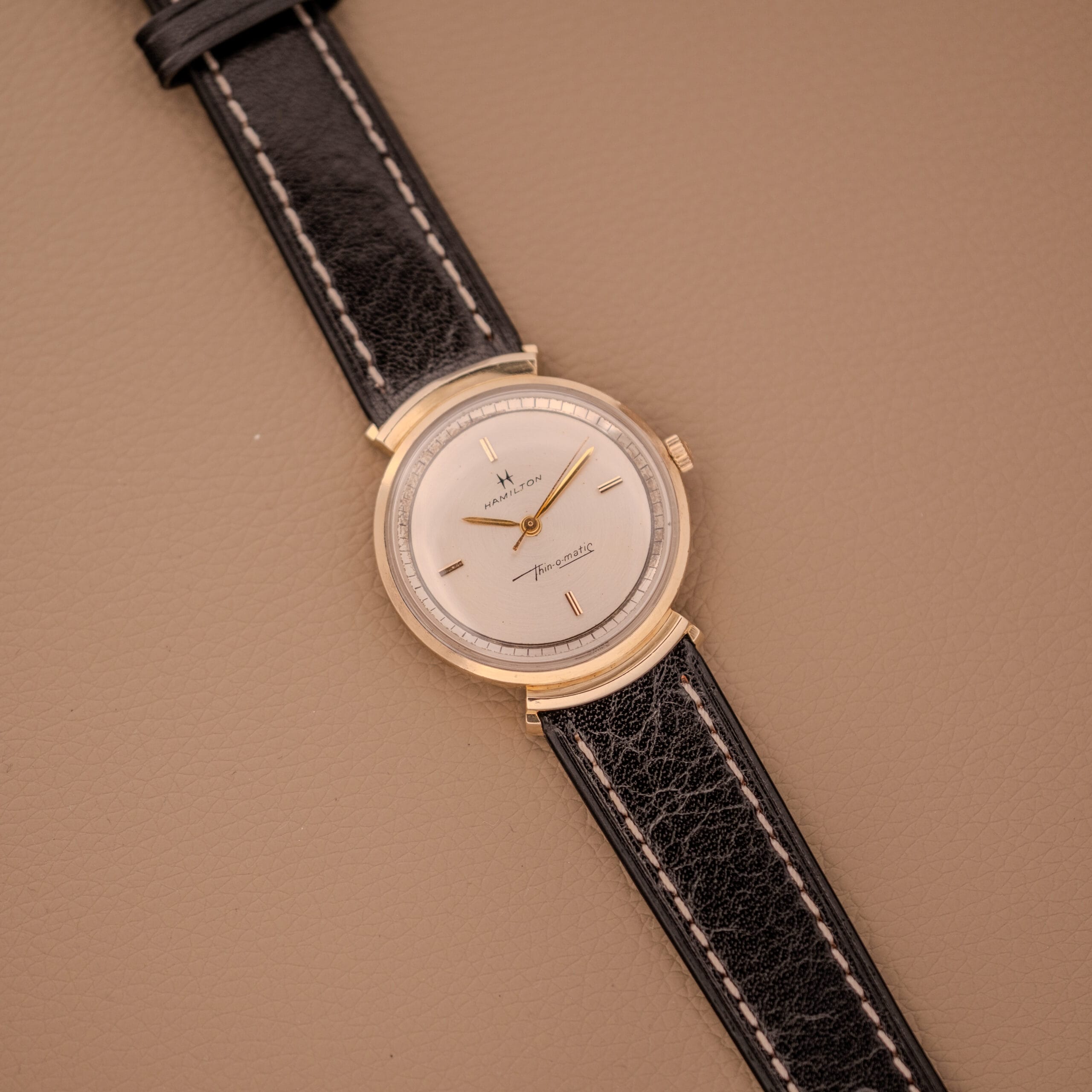

It currently wears a black leather strap with white contrast saddle stitching, fitted to the 18mm lug width, which sets up a high-contrast pairing against the warm gold case. For a more conservative period look, a chocolate brown calf or a dark cordovan would dress it down handsomely.
Serviced in-house at OTTUHR and backed by our 2-year mechanical warranty, this Hamilton Thin-O-Matic Ref. T-406 is for the collector who values being early to the story over being in the loudest part of it. To us, owning a Cal. 663 means owning the actual movement that started the micro rotor genre, and the hooded-lug case and engraved caseback just make it more genuinely itself.
