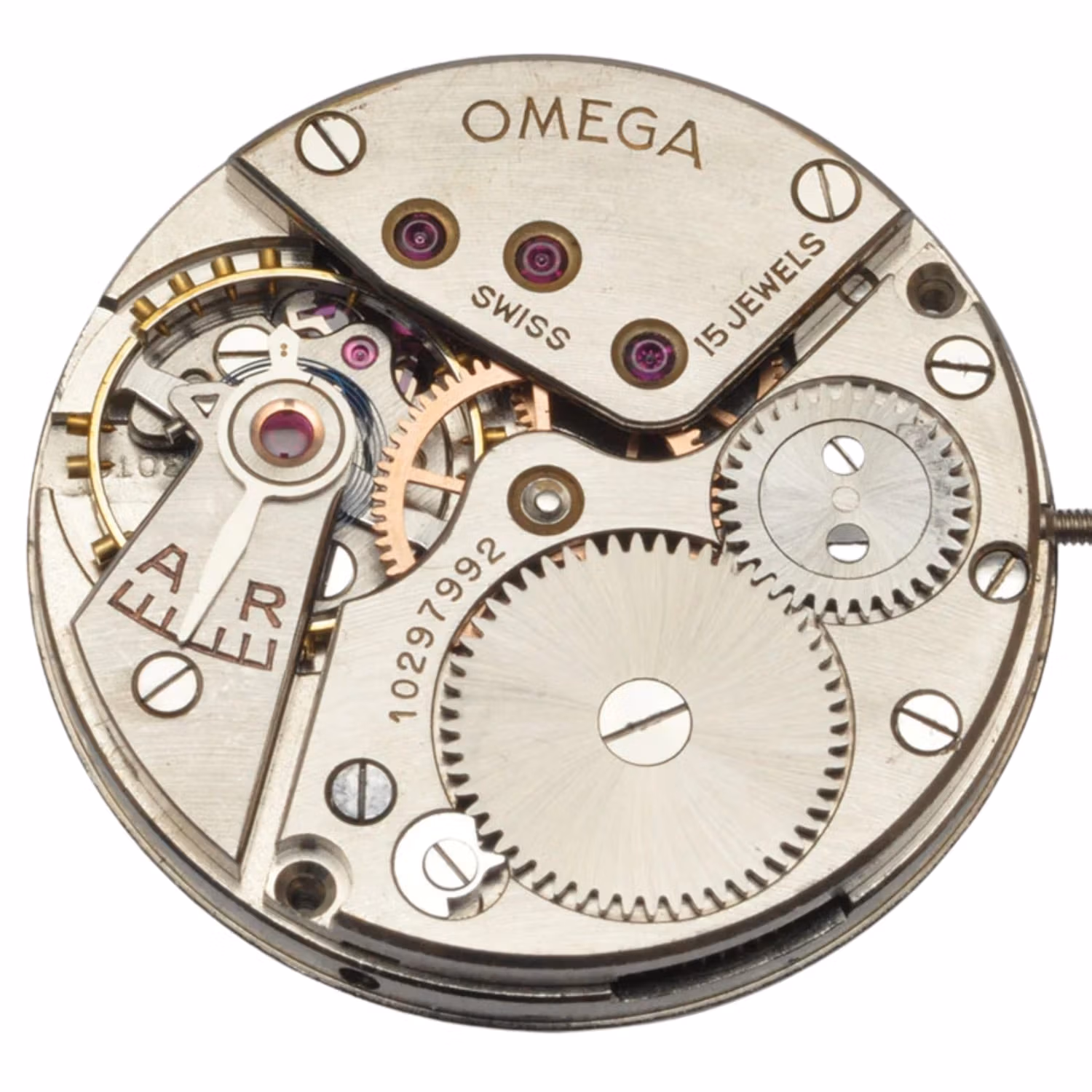

Omega 30T2

The Omega 30T2 is arguably the most significant manual-wind movement in Omega’s pre-Constellation era. Introduced in 1939, it became the foundation of Omega’s reputation for reliability and accuracy through one of the most extended and successful production runs in watchmaking history. Produced until 1963 with roughly three million examples manufactured, the 30T2 equipped everything from military field watches ordered en masse by Allied governments during WWII to precision chronometers that contended with the finest observatory regulators of the era. Its elegance lies not in miniaturization or complexity, but in a brutally functional architecture that watchmakers still compliment for assembly simplicity and durability.

History & Development

The 30T2 evolved from Omega’s 30mm movement family, which began development in the mid-1930s. Designed in 1939 by Henry Kneuss, an assistant technical director at Omega’s Bienne manufacture, with consultation from Paul Brandt and Otto Pfluger, the caliber represented a fundamental departure from the miniaturized pocket watch approach favored by competitors like IWC. Rather than shrinking existing mechanisms, Omega’s engineers scaled proportionally, resulting in a movement with larger wheels, pivot holes, and bearing surfaces.

The initial 30T2 was a spare 15-jewel time-only movement without shock protection, suitable for civilian dress watches. Production evolved rapidly through several key iterations:

1943: Introduction of the 30T2 RG (Red Gilt) chronometer-grade variant with superior finishing, fine regulation mechanism, and Breguet overcoil balance springs. Omega produced approximately 18,000 chronometer-grade examples in total.

1940s: Development of the 30T2 SC (subseconds center) variant, which repositioned the seconds hand to the dial center for improved military readability. The British government contracted for over 110,000 30T2 SC movements during WWII, representing roughly 10% of Omega’s total wartime output.

Post-1949: As Omega shifted nomenclature, the 30T2 became classified within the 26x/28x series, eventually designated Cal. 260 and Cal. 280. The lineage extended until 1963, with final iterations incorporating Incabloc shock protection.

Notable military applications included the CK2292 (WWW, Watch Wristlet Waterproof specification), adopted by the British RAF and Navy for precision timing of bomb drops and navigation. This watch became a cornerstone of the “Dirty Dozen” legend.

Technical Details

Architecture and Design Philosophy

The 30T2’s structural elegance stems from its robust pillar plate design. At 30mm wide and 5.1-5.4mm thick, the movement presents large, functionally finished plates and wheels with proportionate spacing. This contrasts sharply with contemporary designs like the IWC Cal. 83, which compressed pocket watch architecture into compact cases. The 30T2 philosophy was simplicity in service of reliability: fewer potential failure points, easier assembly, superior pivot bearing geometry.

Winding System

Manual wind (hand-wound), with a barrel arbor indexed to prevent overwinding. No shock-protected variants featured automatic winding, though Omega introduced the bumper automatic Cal. 30.10 and Cal. 28.10 concurrently (1943), using similar architecture but with rotor mechanisms.

Regulation Mechanism

The 30T2 uses a simple regulator index located on the balance cock. Movement of the regulator arms closes or opens the hairspring gaps, altering effective length and rate. Unlike later designs with micrometric fine adjusters, the 30T2 relies on mechanical precision and careful adjustment technique. Beat error correction uses the balance wheel collar, which can be moved slightly along the balance staff to correct isochronism errors, though this requires skill and is not infinitely adjustable. Early versions lack mean-time screws entirely; adjustment relies solely on regulator arm position and balance staff collar manipulation.

Balance and Hairspring

Later variants (particularly the RG series and PC versions) featured Breguet overcoil balance springs, improving concentricity and reducing quadrature error. Early 15-jewel versions may have used simpler flat or single-coil springs. The balance wheel itself is fitted with timing screws (small adjusting screws at cardinal points) to allow fine tuning of oscillation distribution in different positions, though these cannot achieve the dramatic rate correction of mean-time screws on larger movements.

Frequency and Beat Rate

The movement oscillates at a steady 18,000 vibrations per hour (2.5 Hz), typical for the era. This beat rate represents a balance point: fast enough to reduce positional variance impact, slow enough to permit robust jewel geometry and adequate oil film between pivots.

Performance Specifications

Expected Performance

A healthy 30T2 exhibits:

• Amplitude range: 275-315 degrees (dial up position typically 290-310 degrees)
• Acceptable beat error: 0.0-0.5 milliseconds (tight regulation)
• Positional variance: Expect +8-15 seconds per day variance between dial-up, dial-down, crown positions
• Power reserve: 44 hours nominal, typically 36-48 hours in worn examples

Service Thresholds

Amplitude falling below 250 degrees indicates wear in the wheel train, pivot holes, or bearing surfaces. Beat error exceeding 1.0 millisecond suggests regulator adjustment is needed or the hairspring is bent/damaged.

Chronometer-Grade Tolerance (30T2 RG)

Omega offered certified chronometer variants meeting observatory standards:

• COSC or equivalent tolerance: +5 to -3 seconds per day (ten-day average, five positions)
• These movements received hand-finished bridges, mirror-polished anglaged parts, and specialized regulation by Omega’s chronometer department

Regulation & Adjustment

Regulator Type

Standard index regulator with two pins; no micrometric fine-adjust feature. Adjustment is binary (open or close the pins) with sensitivity dependent on hairspring design and balance properties. The regulator index resides on the balance cock bridge.

Beat Error Adjustment Method

Unlike movements with fixed impulse jewel geometry, the 30T2 allows limited beat error correction by:

1. Moving the balance wheel collar along the staff (millimeter-scale adjustment requiring complete movement disassembly and careful measurement)
2. In some variants, adjusting regulator pin placement within small clearance tolerances

This is not a practical adjustment for field service; beat error correction requires bench expertise and a timing machine.

Adjustment Sensitivity and Range

Moving the regulator pins inward by 0.5mm typically changes rate by 15-25 seconds per day. Fine tuning requires patience and an electronic timer. The short regulator arm length provides moderate leverage; adjustment remains relatively coarse by modern standards but sufficient for timekeeping within acceptable tolerance.

Known Quirks

• Regulator pin stick: Dust accumulation or corrosion can make regulator pins difficult to move. Gentle lever pressure with a tool, never hammering.
• Positional variance dominance: The relatively slow beat rate means positional error (vertical vs. horizontal positions) dominates observed rate variance. A movement running +3 sec/day dial-up and -10 sec/day dial-down is normal; solving this requires balance weight redistribution, not regulator adjustment alone.
• Hairspring vulnerability: Breguet overcoil springs, while superior to flat spirals, are prone to flat spots and bending if the watch is shocked. Even small dents alter timing dramatically.

Serviceability & Maintenance

Recommended Service Interval

Every 5-7 years for regular wear; every 3-4 years if the watch is worn daily in dusty or variable-temperature conditions. Military surplus examples often show 50+ years without service; once serviced, they typically perform reliably for another decade if worn moderately.

Parts Availability Status

Currently available:

• Mainspring (generic fit, requires height adjustment)
• Click spring, setting lever spring, ratchet wheel, barrel arbor bushings
• Balance staff (common wear item; Omega Cal. 100 roller table compatible with many 30T2 configurations)

Becoming scarce:

• Original Omega regulation components (regulator index, balance cock for specific variants)
• Chronometer-grade bridges (30T2 RG specific geometry)
• Original case components (screw-back cases, specialized tubes)

NOS or increasingly difficult:

• Breguet overcoil hairsprings in correct dimensions (specialists can rewind, but cost approaches full service)
• Complete plates (pillar plates rarely fail; replacement involves partial movement reconstruction)
• Shock protection capstones (Incabloc systems compatible but sourcing authentic Omega units preferred)

Service Cost Range

• Basic service (cleaning, lubrication, adjustment, regulation): $300-500 USD
• Full overhaul (with worn parts replacement): $600-1,000 USD
• Chronometer regulation (30T2 RG variants): $1,200-1,800 USD (if available from specialized providers)

Authorized Omega service centers often decline 30T2 work, directing customers to independent specialists. Cost variation reflects regional labor rates and parts sourcing.

Required Specialty Tools

• Movement holder (brass-lined, 30mm diameter soft jaws)
• Screwdriver set (2mm to 4mm heads; 30T2 uses Phillips and slot drives)
• Case-back remover (for screw-back military cases)
• Hairspring tweezers and Breguet key (for balance spring work)
• Timing machine (electronic preferred; mechanical timing forks acceptable but less precise)
• Staking tool set (for cap jewel and bearing replacement)
• Jewel holder forceps (for cap jewel installation)

Recommended Lubricants by Position

Use sparingly. The 30T2 is unforgiving of over-lubrication; excess oil migrates to hairspring coils, increasing viscous damping and reducing amplitude.

Known Issues & Failure Points

Chronic Wear Areas

1. Balance staff pivots: The balance oscillates 18,000 times per hour. Pivot holes (both jeweled and in soft metal) wear gradually, increasing endshake and affecting isochronism. A worn balance staff noticeably increases rate in vertical positions. Replacement is common; original Omega staffs are preferred, though compatible modern alternatives exist.
2. Mainspring fatigue: After 50+ years, the mainspring loses elasticity and may not provide advertised power reserve. Replacement is straightforward but requires accurate height measurement to fit the barrel.
3. Click spring brittleness: Early versions had click springs prone to cracking, especially in watches exposed to temperature extremes. Replacement is simple and inexpensive.
4. Regulator pin and fork wear: The regulator arms gradually loosen in their pivot holes, allowing creeping movement. If regulator pins are badly worn, they may require bush renewal.
5. Pallet fork wear: The escape wheel cams gradually round the pallet jewel seating surfaces. Severe wear causes instability and potential jewel fracture. Replacement pallet fork or jewel staking required.

Design Weaknesses

• Hairspring vulnerability: Breguet overcoil springs in 30T2 RG and later variants are elegant but brittle. Any shock risk bending or flat-spotting the spring, dramatically affecting rate. Watches stored improperly or bumped during disassembly/assembly frequently exhibit hairspring damage.
• Shock protection deficit: Early 30T2 variants (1939-1945) lack Incabloc or equivalent. Military watches in this group that were actually used in combat show balance staff fractures from shock. The PC (shock protection) version addressed this, but many Field examples remain unprotected.
• Wheel arbor corrosion: In watches with compromised water seals, salt spray or moisture attack the steel wheel pivots and arbors. Corrosion pitting then accelerates wear. This is a particular risk in military CK2292 examples, which were exposed to aircraft/maritime environments.

Signs of Improper Previous Service

• Mismatched or polished screws: The 30T2 uses specific screw profiles. Burrs, over-polishing, or substituted screws indicate careless work. Original screws are slightly oxidized; replacement screws gleam.
• Refinished plates: Over-polishing the main plate and bridges removes original finishing. Look for unnaturally smooth surfaces, loss of radial or starburst patterns, or burnished bridging. Excessive polishing thins plates and compromises structural integrity.
• Wrong jewel count: Examples advertised as “17 jewels” with only 15 visible. Unscrupulous rebuilders substitute cap jewels or add dummy jewels. Count jewel holes; caps should be present in proper positions.
• Non-original balance staff or hairspring: Original 30T2 staffs exhibit Omega marking. A contemporary replacement (even if compatible) reduces value. Hairspring replacement is obvious under magnification; color tone, coil spacing, and overcoil profile differ.
• Incorrect Incabloc orientation: The shock protection capstone can be installed backward or without proper seating. Poorly seated capstones fail under mild shock, defeating protection purpose.
• Loose or missing screws: Indicates incomplete assembly post-service. Check all visible screws for tightness and proper fit.

Age-Related Wear Patterns

Watches surviving 75+ years show characteristic wear:

• Pallets: Slight rounding of the jewel seats is normal; severe flatting requires jewel replacement.
• Escape wheel: Tooth roundness at the cam edges (where pawls engage). Uneven wear suggests the escape wheel was running out-of-true.
• Gear train: Visible wear grooves on pivot holes in the main plate. Severe pitting or eccentric wear indicates the movement was run dry or damaged internally.
• Hairspring: Fine rust spots or oxidation (if water entered the balance cock) are typical. Discoloration without structural damage is cosmetic only.
• Plates and bridges: Surface oxidation, dust etching, and finish wear are expected. Original blued screws may have lost color. This is desirable in collectors’ eyes; heavy re-finishing diminishes appeal.

Parts Information & Diagrams

Unfortunately, comprehensive exploded views of the 30T2 are not readily available in public archives. The movement predates digital documentation standardization. However, parts break down into these major assemblies:

Common Replacement Parts and Reference Numbers

Commonly Worn Components Requiring Frequent Replacement

1. Balance staff (wear on pivots, endshake increase)
2. Mainspring (loss of elasticity)
3. Click spring (fatigue cracking, especially in thermal cycles)
4. Hairspring (bending, flat spots from shocks or improper handling)
5. Pallet jewels (rounding of seating surfaces)
6. Regulator fork (wear in pivot holes, creeping adjustment)

Compatibility

Dial Feet Positions and Spacing

The 30T2 uses two dial feet located at 12 and 6 o’clock positions (120-degree symmetry typical for three-handed layouts). Distance from center: approximately 9.5mm for 12 o’clock foot, 10mm for 6 o’clock foot. Orientation: feet point inward (toward center), with flat seating surfaces. Dial feet are slightly offset to accommodate the center wheel and escape wheel bridge; reversing a dial requires careful alignment.

Hand Sizes

Case Compatibility

The 30T2 was housed in cases ranging from 32mm to 38mm in overall diameter, with most examples in the 34-36mm range. The movement itself dictates minimum case dimensions:

• Lug width: Typically 18-20mm for the era
• Case back clearance: Minimum 5.5mm required (movement height plus slight tolerance); screw-back military cases often had minimal clearance
• Crown positioning: The crown sits at 3 o’clock in standard orientation; alternate crown positions (2 o’clock military specifications) require custom case drilling

Water-resistant military cases (CK2292 specification) used screw backs with O-ring seals; civilian cases ranged from snap-back to screw-back designs.

Stem and Crown Compatibility

• Stem tap: Typically M6 x 0.75 (6mm diameter, 0.75mm pitch), though some variants used M6.5 or M7 threads
• Stem length: Ranged from 70mm to 85mm depending on case depth and crown type
• Crown diameter: 6-7mm typical, with variations for military and dress models
• Stem fit: The setting lever engages a notch on the stem; incorrect stem length causes hand-setting malfunction

Replacement stems are available through Omega service, but measuring the original before ordering is critical.

Crystal and Movement Ring

• Crystal: Typically a 30-32mm Plexiglass crystal (acrylic) with flat or domed profile
• Movement ring (case tube): Brass or steel ring that holds the movement in the case. Omega rings are often marked with caliber numbers and serial codes. The ring must match case internal diameter (±0.1mm tolerance)
• Gaskets: Rubber rings under the crystal and case back prevent water ingress. Original Omega gaskets are preferred; modern silicone alternatives acceptable for non-diving applications

Identification & Markings

Locating the Caliber Number

The caliber number is stamped on the main pillar plate (the top visible plate when viewing the movement from the dial side). Look for “30T2” marked directly on the plate alongside the Omega symbol. Some variants add suffix letters: PC (Incabloc), SC (subseconds center), RG(chronometer, red gilt), or combinations like 30T2 SC PC.

Engravings and Maker’s Marks

• Omega symbol (Ω) appears on the main plate, typically at 12 o’clock
• Designation marks: “CHRONOMETRE” and “OMEGA” stamp in arch formation on chronometer-grade (RG) variants
• Serial numbers: Some examples carry serial codes on the barrel, but not all. These do not correlate to official Omega serial number tables; many were manufacturer’s batch codes rather than serial tracking numbers
• Military marks: British government acceptance stamps appear on CK2292 watches; US military models (rare) may carry inspection marks

Distinguishing from Similar Calibers

The 30T2 stands alone in its 30mm diameter class among contemporary Omega movements. Confusion may arise with:

• Cal. 26.5: Slightly smaller (26.5mm diameter), different balance cock design. The 26.5 appears more delicate; the 30T2 is visibly more robust
• Cal. 260/280: Later nomenclature for evolved 30T2 designs. Platform is identical; jewel counts and regulator updates distinguish them
• Rolex Tudor movements: Contemporary competitors like the Rolex 6494 (17 jewels) are similar in appearance but show different balance wheel geometry and platform layout. Omega movements show the distinctive red-gilt finishing on RG variants; Rolex calibers do not

Signs of Service and Modification

• Non-original balance wheel: Replacement wheels are often unmarked or carry generic maker’s stamps. Original Omega balances show Omega engraving and specific weight distribution patterns
• Refinished plates: As mentioned, over-polished surfaces indicate prior service. Seek out examples with original radial (sunburst) or spiral finishing intact
• Non-original screws: Burrs or misfit screw heads suggest replacements. Original Omega screws fit snugly in any position; loose screws indicate poor sourcing
• Hairspring color: Original Breguet overcoil springs from the 1940s-1950s exhibit a specific oxidation patina (slightly blued). Bright, polished hairsprings are replacements

Collector Considerations

Value Drivers

1. Original finish and condition: Unpolished plates with intact radial finishing command premium prices. A 30T2 with factory blued screws, original hands, and untouched dial can fetch $1,500-2,500 in gold; $800-1,200 in stainless
2. Variant rarity: 30T2 RG chronometer examples are scarcer and valued 30-50% above standard versions. 30T2 SC military watches (especially CK2292 and Suverän models) attract military collectors
3. Case quality: Gold cases (18K preferred over 9K) hold value better than stainless. Original Omega stampings and serial numbers on cases increase desirability
4. Dial originality: Original Arabic numeral dials with matching hands are highly desirable. Refinished dials cost 30-40% of the watch’s value in premium examples
5. Matched serial numbers: Case, movement, and dial matching the same serial number increases value 20-30%

Red Flags to Avoid

• Polished plates: Indicates previous heavy-handed service. Cosmetic only but signals amateur workmanship
• Replaced balance or hairspring: Significantly diminishes value; collectors prioritize originality
• Incorrect screws or non-original parts: Watch out for obviously replaced components; parts mismatches suggest inadequate care
• Weak lume: Lume loss is cosmetic, but extreme degradation (complete yellowing or flaking) may indicate moisture exposure that damaged internal parts
• Over-restored dials: Repainting or relumeing dials visible under magnification. Subtle restoration is acceptable; obvious work reduces value

Reproductions and Franken-watches

The 30T2’s popularity in military collector circles has spawned some issues:

• Case reproductions: Modern manufacturers have produced CK2292 replica cases using period tooling imagery. Verify maker’s marks and feel of construction with reference examples
• Dial reproductions: High-quality reproductions of RAF military dials exist; compare lume application, font consistency, and printing defects with known originals
• Movement combinations: Beware of “army watches” with non-original 30T2 movements installed in reproduction cases. Provenance verification with original photos/documentation essential for premium examples

Originality Assessment: Replace vs. Preserve

Investment and Collecting Notes

The 30T2 remains an excellent entry point into vintage Omega collecting. Prices have stabilized in the $800-$2,000 range for stainless steel examples, with gold variants commanding premiums. Military variants (especially CK2292 models with documented provenance) attract specialist collectors and tend to appreciate. Chronometer-grade RG examples are scarcer and potentially stronger long-term holds.

The movement’s reputation and accessibility make it relatively easy to service with qualified independent watchmakers, reducing future ownership costs compared to exotic or proprietary calibers.

Reference Materials

Technical Documentation

• Omega service manuals: Difficult to locate; most watchmakers rely on experience-based knowledge. Omega factory bulletins occasionally surface on specialized forums
• Movement drawings (exploded views): Not published by Omega for consumer distribution. Specialized resources like the SQUELETTE WATCHES archive (squelettewatches.com) document 30mm chronometer variants with detailed photographs and measurements
• Archives: The WatchRepairTalk forum and NAWCC (National Association of Watch and Clock Collectors) archives contain field experience reports and specific adjustment techniques

Recommended Books

• “A Journey Through Time” by Marco Richon (Omega SA, 2007): Comprehensive Omega history with detailed coverage of the 30T2 and its evolution; includes historical context and production figures
• “Omega Constellation” heritage references: While focused on the Constellation, these volumes provide comparative context to the 30T2’s role in establishing Omega’s precision reputation
• “The World of Omega” by Katherine Gilje & Marco Richon: Official Omega historical reference; strong on military contracts and wartime production

Online Databases and Archives

• Ranfft.org: Comprehensive caliber database with technical specifications for 30T2 and variants
• SQUELETTE WATCHES (squelettewatches.com): Exceptional resource for 30mm chronometer movements; includes detailed photographs of RG variants and finishing techniques
• OmegaForums.net: Collector community with technical discussions, period documentation scans, and user experiences
• NAWCC Online Museum: Occasionally features movement documentation and historical research

Part Catalogs

• eBay searches (limited but practical):
  • “Omega 30T2 movement parts” – Variable results but yields surviving NOS components
  • “Omega Cal 30T2 balance staff” – Specific donor movements still available
  • “Omega 30T2 mainspring” – Generic fit springs requiring modification
